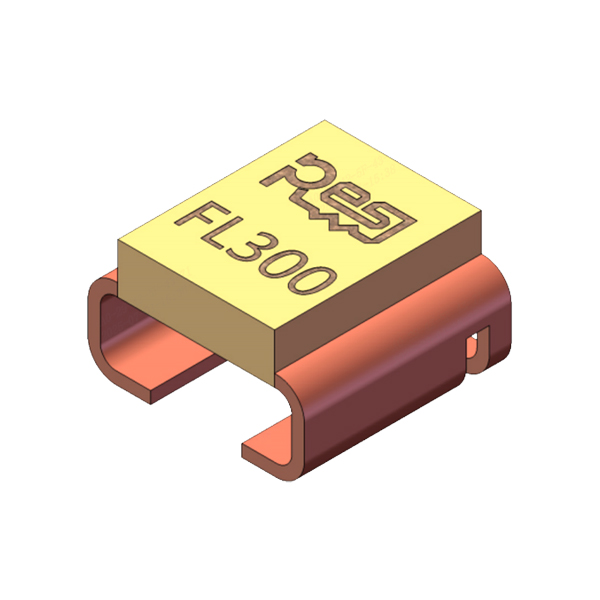

Picture for Reference Only
Basic Specifications:
Resistance Range
0.2mΩ~1mΩ
Rated Power
7W-12W
Tightest Tolerance
±0.5%
TCR
±100ppm
Mounting
SMD
Technology
Alloy
Applications
Current Sense
Operation Temp. Range
-55℃ to +170℃
RoHS
Y
Series:
PEWM2726
Brand:
RESI
Description:
PEWM2726 series is a 4-terminal tight-tolerance and low-TCR alloy current sensing resistor, 2726 size, based on Trimming-Free technology, which avoids hot spot problems and power loss issues, with a tightest tolerance of ±0.5%. Excellent heat dissipation performance, with a maximum power of 12W.
